Low Noise omr / bmr 80cc Hydraulic Motor For Skid Steer Loader
Blince BMR Features:
1. Unaided shaft with roll-generator gear set design and
high-efficiency;
2. Special dynamic seal can bear high back pressure
3. Variety of mounting flange, output shaft, and port
4. Small volume and smart structure;
5. Widely used at plastic injection machinery, agriculture
machinery tool
6. Packing: 25 or 50 small box in a big box with pallet
7. Displacement for choose: 36, 50, 80, 100, 125, 160, 200, 250,
315, 375CC.
We are the specialized manufacturer of orbital hydraulic motor. We
can provide more than 2000 kinds of motor with different models and
technical parameters: the rated displacement from 50mm to 1600cc,
Max. torque from 50N.m to 3300N.m, Max. output power from 2 KW to
90 KW, which has provided wide choice to meet customer's needs.
Meanwhile, Our products manufactured can be completely interchanged
with SAUER DANFOSS OMP, OMR, OMH, OMS, OMT AND OMV series.
| Type | OMR 36 | OMR 50 | OMR 80 | OMR 100 | OMR 125 | OMR 160 | OMR 200 | OMR 250 | OMR 315 | OMR 375 |
| Displacement (cc/rev) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 |
Max speed rate (rpm)
| cont | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 |
Max torque (N.m) | cont | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 |
Max output (KW) | cont | 8.5 | 9.5 | 12.5 | 13.0 | 12.5 | 12.5 | 10.0 | 7.0 | 6.0 | 5.0 |
| int | 9.8 | 11.2 | 15.0 | 15.0 | 14.5 | 14.0 | 13.0 | 9.5 | 9.0 | 8.0 |
Max pressure Drop(Mpa) | cont | 14.0 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 |
Max.flow (L/min) | cont | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| Weight(kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8.0 | 8.5 | 9.0 | 9.5 |

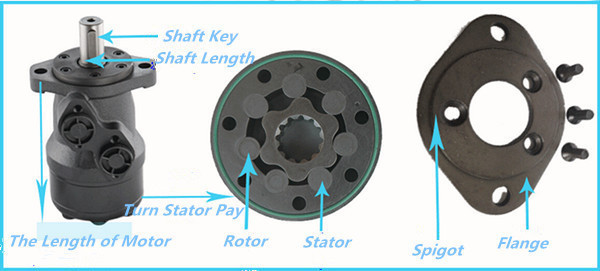

OMR shaft mounting type:
OMR flange type mounting:
OMR hydraulic motors are widely applied in agriculture
machinery,fishing machinery,plastic industry,mining,and
construction machinery, especially fitted to lower load
applications,such as plastic injection mold machine,cleaner,grass
cutter,etc.
The Shopping Note:
1.Take this page for reference and select product number in the
following. For features that are not indicated in this page, please
contact us.
2.If the product has quality problems, we can solve the problems.
3.If you have some questions about the installation of the product,
please contact us.
