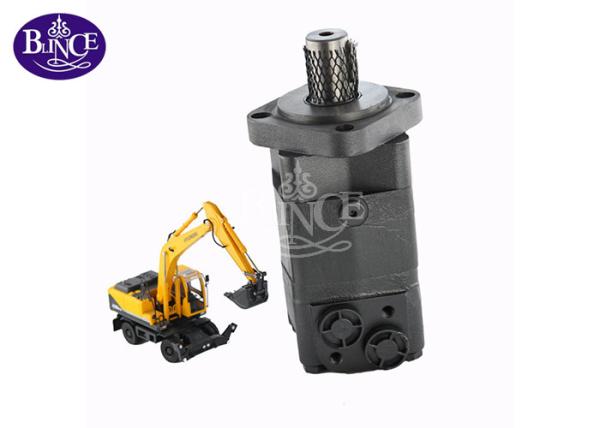

Hydraulic Motor OMS BMS 80cc For Winch Orbital Motor For Compact Winch
OMS series motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic:
* Advanced manufacturing devices for the Geroler gear set,which use
low pressure of start-up, provide smooth and reliable operation and
high efficiency.
* The output shaft adapts in tapered roller bearings that permit
high axial and radial forces.The case can offers capacities of high
pressure and high torque in the wide of applications.
* Advanced design in disc distrbution flow, which can automatically
compensate in operating with high volume efficiency and long
life,provide smooth and reliable operation.
We are Dealing Equivalent Replacement Of Danfoss OMS Hydraulic
Motor Which are fully interchangeable with BMR and MR Hydraulic
Motor, OMS of OMS80, OMS100, OMS125, OMS160, OMS200, OMS250,
OMS315, OMS400, OMS475 orbital hydraulic motor Danfoss series
motors Replacements.
Our Hydraulic Motor is fully Equivalent to Danfoss OMR Hydraulic
Motor or Our Orbit Hydraulic Motor BMP - BMR -BM3 is Fully
interchangeble with OMP - OMR - OMS - OMT - OMV .
Also equivalent replacement Eaton Char-lynn motor J, H, S, 2K, 6K series orbit hydraulic motor and so on. Equivalent motor has its high efficiency, high output and long life features.
Type | OMSY | OMSY | OMSY | OMSY | OMSY | OMSY | OMSY | OMSY | OMSY | ||
Displacement | 80.6 | 100.8 | 125 | 154 | 194 | 243 | 311 | 394 | 475 | ||
Max speed rate (rpm) | cont | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 | |
int | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | ||
Max torque | cont | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | 910 | |
int | 250 | 320 | 400 | 540 | 645 | 806 | 960 | 960 | 960 | ||
Max output | cont | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | 9 | |
int | 20 | 22 | 23 | 24 | 24 | 23.8 | 20.2 | 12 | 11 | ||
Max pressure | cont | 20.5 | 20.5 | 20.5 | 21 | 21 | 20 | 20 | 16 | 14 | |
int | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 17.5 | 15 | ||
Max.flow | cont | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
int | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | ||
Weight(kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 |
OMS installation dimension:
Contact us and get more information, we will help you to get your best choice.
![]() |
