Brand Name : | BLINCE |
Model Number : | BMM / OMM |
Certification : | ISO9001:2008 |
Price : | Negotiation |
Payment Terms : | Western Union, T/T, paypal, , L/C |
Supply Ability : | 3000pcs/month |
Delivery Time : | 10-20 working days |

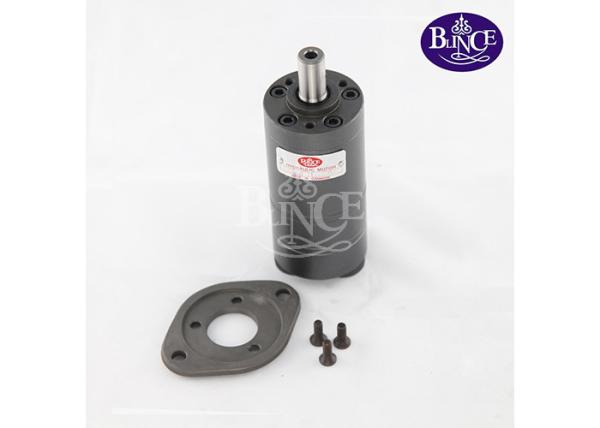

Small Hydraulic Orbital Motors OMM Hydraulic Motor For Indoor Sweeper
UNIQUE FEATURE
OMM series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt
the Gerotor gear set design and provide compact volume, high power and low weigth.
Characteristic features:
* Advanced manufacturing devices for the Gerotor gear set, which
provide small volume, high efficiency and long life.
* Shaft seal can bear high pressure of motor of which can be used
in parallel or in series.
* Advanced construction design, high power and low weight.
Applications:
Applicated in sweeper machine / injection molding machine / winch / lawn mower / mini garden tractors/ wheat harvest machine
/ fish boat/ mini crawler tractor / winch machine / convery equipment/ road line maker /etc.
Blince OMM equivalent with Danfoss OMM series and Char-lynn J 129 series | |||||||
Type | OMM 8 | OMM 12.5 | OMM 20 | OMM 32 | OMM 40 | OMM 50 | |
Geometric displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
Max.speed (rpm) | cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 |
int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
Max.torque(N.m) | cont. | 11 | 16 | 25 | 40 | 45 | 46 |
int. | 15 | 23 | 35 | 57 | 70 | 88 | |
Max.output(KW) | cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 |
Int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
Max.pressure Drop (Mpa) | cont. | 10 | 10 | 10 | 10 | 9 | 7 |
int. | 14 | 14 | 14 | 14 | 14 | 14 | |
Max.flow(L/min) | cont. | 16 | 20 | 20 | 20 | 20 | 20 |
int. | 20 | 25 | 25 | 25 | 25 | 25 | |
Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 |
Please do not hesitate to contact us for further information,
inquiries or orders.
Thank you for choosing Blince Hydraulic.
![]() |
